Weight calculation formula of titanium alloy materials such as titanium rod, titanium plate and titanium wire
1. The weight calculation formula of titanium rod. (This formula is applicable to titanium wire, titanium cake, titanium ingot, titanium shaft, titanium cylinder, etc.)
Formula: weight (KG)=diameter mm × Diameter mm × three point one four × four point five one × Length mm/400000
Simple formula: weight (KG)=diameter mm × Diameter mm × three point five four two × Length mm/1000000
Example: Titanium rod Φ 50mm dia × 3000mm long
Calculation: 50 × fifty × three point one four × four point five one × 3000/4000,000=26.6KG
fifty × fifty × three point five four two × 3000/1000,000=26.6K

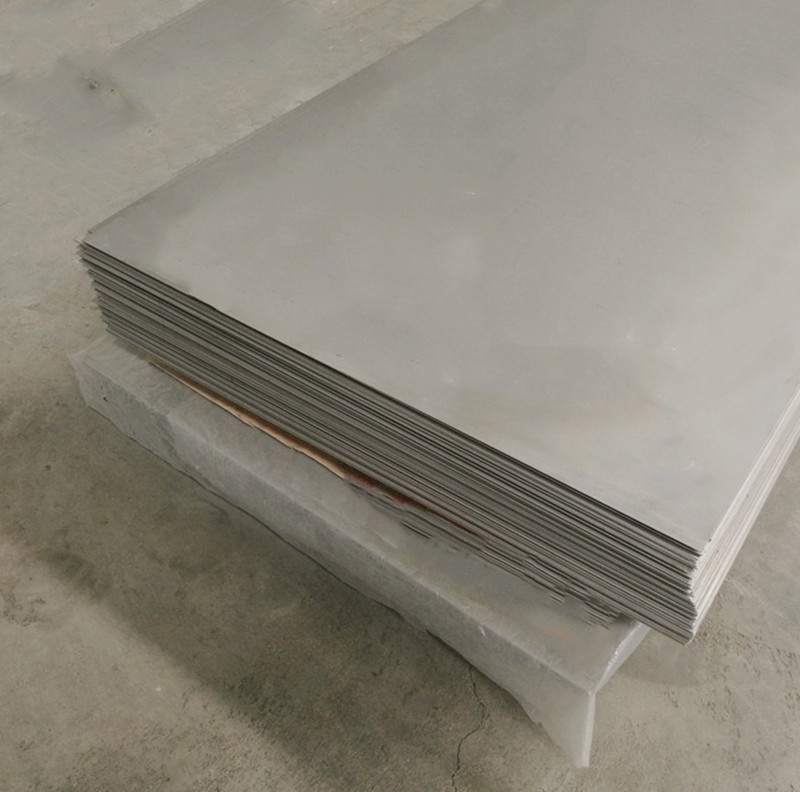

2. Weight calculation formula of titanium plate. (This formula is applicable to titanium square, titanium square bar, etc.)
Formula: weight (KG)=length mm × Width mm × Thickness mm × four point five one ×/ 1000,000
Example: Titanium plate 5mm (thickness) × 1000mm (width) × 2000mm (length)
Calculation: 5 × one thousand × two thousand × 4.51/1000,000=45.1KG

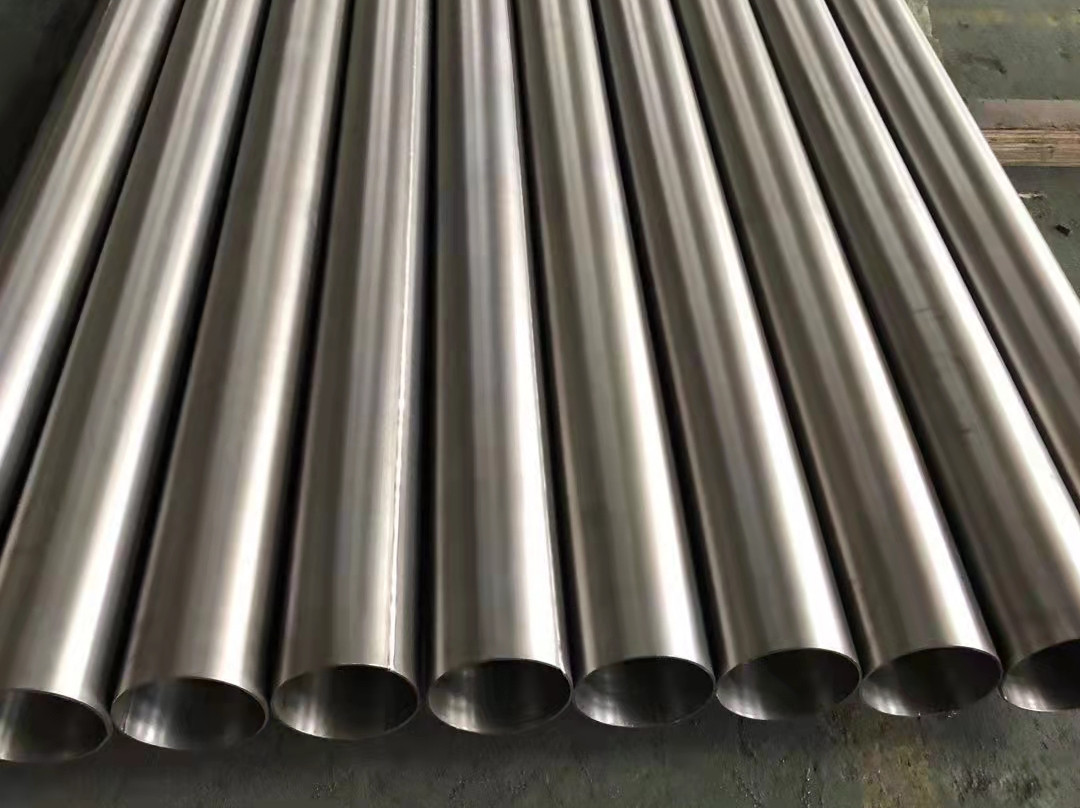

3. Weight calculation formula of titanium tube. (This formula is applicable to titanium ring, titanium cylinder, etc.)
Formula: (outer diameter wall thickness) × Wall thickness mm × three point one four × four point five one × Length mm/1000000
Example: Titanium tube 32mm (outer diameter) × 2mm (wall thickness) × 2000mm (length)
Calculation: (32-2) × two × three point one four × four point five one × 2000/1000,000=1.7KG

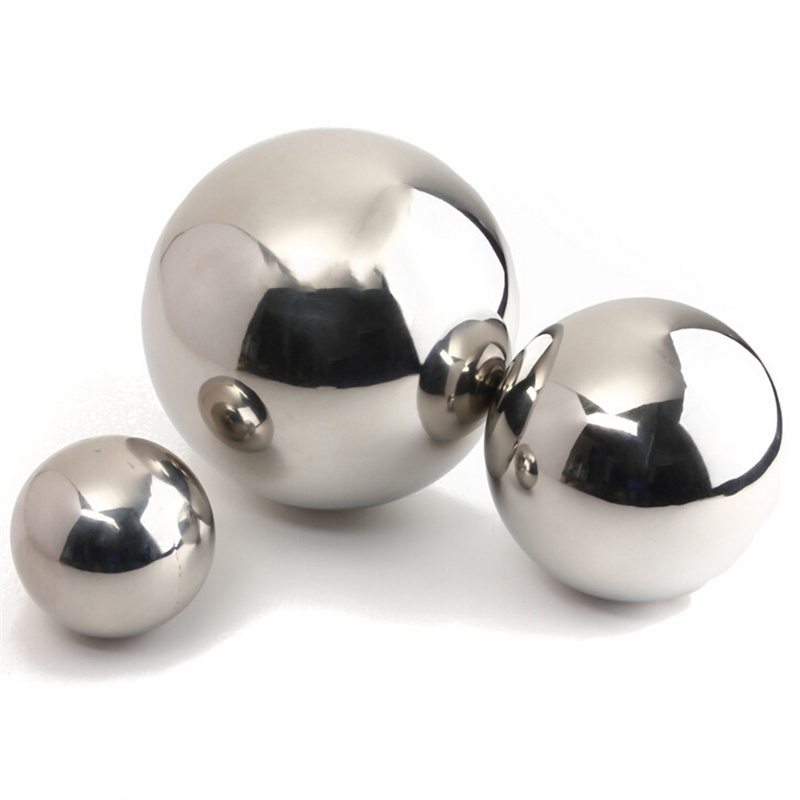

4. Weight calculation formula of titanium bead/titanium ball
Formula: (4/3) π r ^ 3 × 4.51/1000000, r is the sphere radius
Example: Titanium ball 50mm (diameter)
Calculation: (4/3) × three point one four × 25^3 × 4.51/1000,000=0.29kg
